Drive with Confidence –Find a ReliableUsed Steering Gear Boxes Today

Technical verification guidelines and specifications for steering systems.

Critical technical specifications vary by steering system type and vehicle application:

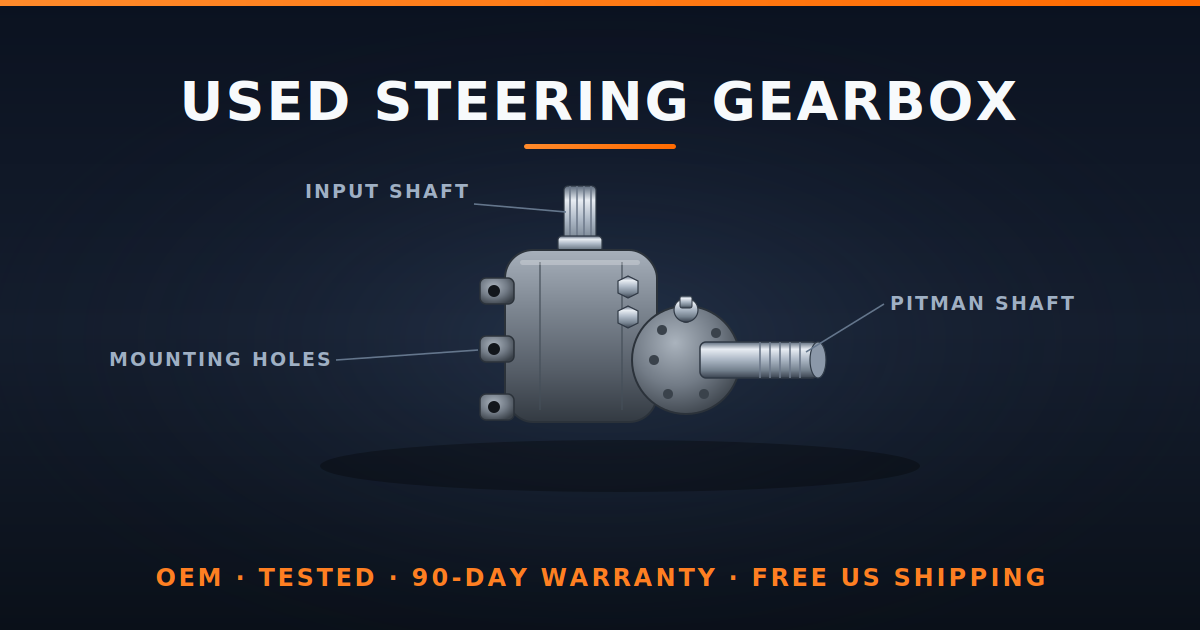

• Gear Box Specifications: Input shaft endplay (0.001-0.004 inch tolerance), Sector shaft backlash (0.004-0.008 inch spec), Worm bearing preload (4-8 in-lbs torque), Total gear ratio verification (12:1 to 24:1), Input shaft spline count (36/48 tooth standard)
• Rack & Pinion Specifications: Rack travel length (±0.020 inch tolerance), Pinion gear backlash (0.002-0.006 inch), Rack bearing preload (2-4 in-lbs typical), Inner tie rod length (model specific), Center rack position (±1mm tolerance)
• Power Assist Systems: Operating pressure (1000-2500 PSI range), Flow rate requirements (2-3 GPM nominal), Relief valve settings (1500-2200 PSI), Line size specifications (pressure/return), Pump flow characteristics curve
• Electric Power Steering: Motor output specifications, Torque sensor resistance values, Control module compatibility, Current draw specifications, Response curve verification

All specifications must be verified with precision measuring equipment.

Make-specific compatibility requirements and specifications.

Compatibility requirements vary significantly by manufacturer:

• Toyota/Lexus Applications: Tundra (2015-2023): 17:1 ratio, 2000 PSI, Land Cruiser: High-pressure system specs, 4Runner: Manual/power specifications, Frame mounting pattern verification, Pitman arm spline configuration
• Ford/Lincoln Requirements: F-150: Electric power assist specs, Explorer: Variable assist parameters, Mounting bushing durometer specs, Steering shaft spline count, Power assist calibration needs
• GM/Chevrolet Specifications: Silverado: HD steering specifications, Suburban: Power assist parameters, Sierra: Gear ratio requirements, Mounting point configurations, Electronic integration needs
• Honda/Acura Standards: Accord: Electric power specs, CR-V: Torque sensor requirements, Control module parameters, Mounting dimensions, Network communication needs

Verify all specifications against original equipment requirements.

Detailed installation requirements and specifications.

Installation procedures require precise measurements and specific tools:

• Pre-Installation Procedures: Alignment angle documentation, Steering wheel position lock, Battery disconnect protocol, Torque wrench calibration check, Line flushing requirements
• Mechanical Installation: Mounting bolt torque sequence, Frame bracket alignment (±0.5mm), Steering shaft connection, Line routing specifications, Ground clearance verification
• Power System Integration: Fluid pressure verification, Air bleeding procedures, Flow rate confirmation, Sensor calibration steps, Control module programming
• Final Adjustments: Center position setting, Steering angle sensor reset, Stop-to-stop verification, Torque input measurement, System pressure testing

Professional installation tools and procedures are essential.

Comprehensive diagnostic and testing procedures.

Diagnostic procedures require specific equipment and measurements:

• Mechanical Diagnostics: Free play measurement (0.25-0.5 inch max), Binding point detection, Noise source identification, Return force testing (2-4 lbs), Center position verification
• Hydraulic System Tests: Static pressure (1500-2200 PSI), Dynamic flow rates (2-3 GPM), Relief valve operation, Return line restriction, Pump output verification
• Electronic Diagnostics: Sensor signal verification, Control module communication, Torque sensor calibration, Assist curve programming, Fault code analysis
• Performance Testing: Steering effort measurement, Return to center behavior, System temperature monitoring, Noise evaluation protocol, Assist curve verification

Use manufacturer-specified diagnostic equipment and procedures.

Maintenance requirements and preventive care procedures.

Maintenance requirements vary by system type and usage:

• Regular Inspection: Fluid condition analysis, Belt tension verification, Line condition inspection, Boot/seal integrity check, Mount condition verification
• Hydraulic Maintenance: Fluid change intervals, System flush procedures, Filter replacement schedule, Pressure verification, Line inspection protocol
• Electronic System Care: Sensor calibration verification, Module update requirements, Wiring inspection protocol, Ground connection check, Connector maintenance
• Preventive Measures: Regular lubrication points, Environmental protection, Load stress management, Operating temperature control, Alignment maintenance

Follow manufacturer-specified maintenance intervals and procedures.
